Live Chat Tray

The agent tray appears in the sidebar of a JSM project when the project has an enabled Live Chat portal. From there, you can find, assign, reply to, and resolve conversations for that project.

Accessing the tray

1. Navigate to a Jira Service Management project.
2. In the project sidebar, locate the Live Chat section.
3. Click Live Chat to open the tray.

Note

If the project does not have an enabled portal, Live Chat will not appear in the sidebar. If you access the tray directly, you will see a message indicating that the project is not configured.

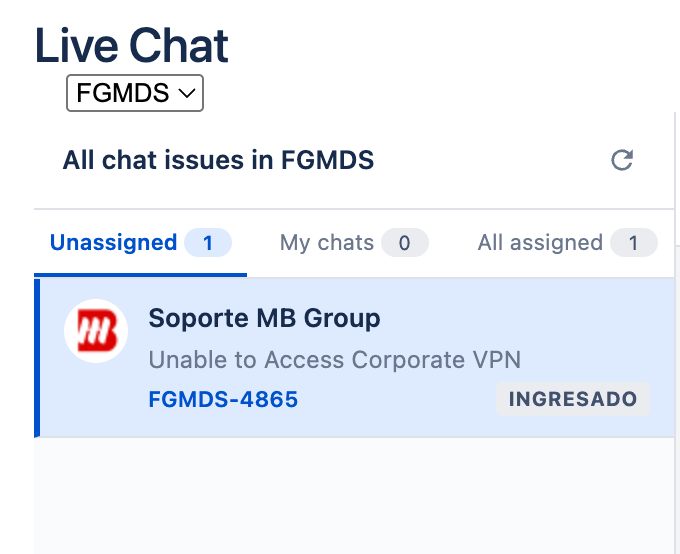

Conversation queues

The tray has three queues. Select the tab that matches what you need to work on:

Unassigned

Shows open chats that do not yet have an assigned agent. This is the recommended queue for taking new conversations.

My chats

Shows open chats assigned to you. Use it to continue conversations that you are already handling.

All assigned

Shows open chats assigned to any agent, including your own chats. Use it to review work that is already being handled by the team.

The queues show clear empty states when they contain no conversations. The filters do not change the history; they only change which conversations you see in the tray.

Working with a conversation

The tray is organized into three columns:

Column 1: Conversations

Shows the project's open conversations in the selected queue. You can see the customer, summary, and time since the last message. Click a conversation to open it.

Column 2: Conversation

Shows the message history for the selected session.

• Attachments: You can send one or more files. Images are previewed in the conversation, while other files show a download link.
• Reply field: Type a message and click Send or press Enter.
• Assign to me: Assigns the request to your user without sending a reply.
• Resolve: Opens the dialog to close the request and chat session.

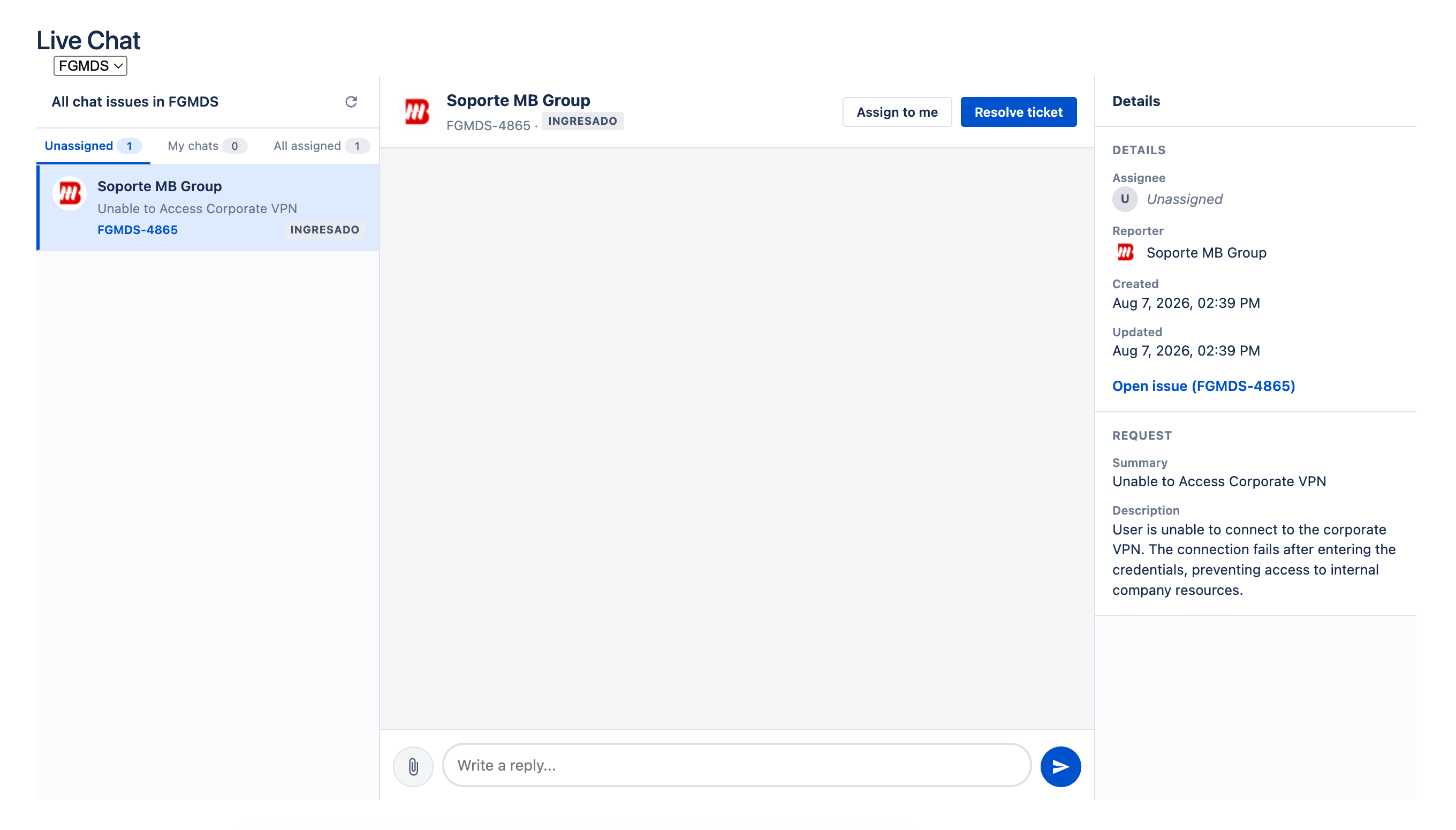

Column 3: Request details

Shows the summary, description, requester, and creation date of the linked JSM request.

Automatic assignment

When you reply to a chat from Jira, the request is automatically assigned to you. If you resolve the conversation, it is also assigned to you before it closes. As a result, a conversation can move from Unassigned to My chats after you reply or resolve it.

A reply sent by the customer from the portal does not assign the conversation to the customer. If Jira cannot update the assignment, the comment or resolution is completed anyway.

Resolving a conversation

When the customer's issue has been resolved:

1. From the conversation column, click Resolve.
2. Add a comment if Jira asks for one.
3. Choose a resolution when that option appears and confirm.
4. The request closes using an available workflow option.
5. The customer sees a message indicating that the chat has been closed and, if the project allows it, can complete the JSM satisfaction survey.

If a problem occurs while closing the request, Jira displays the reason so you can correct it.
